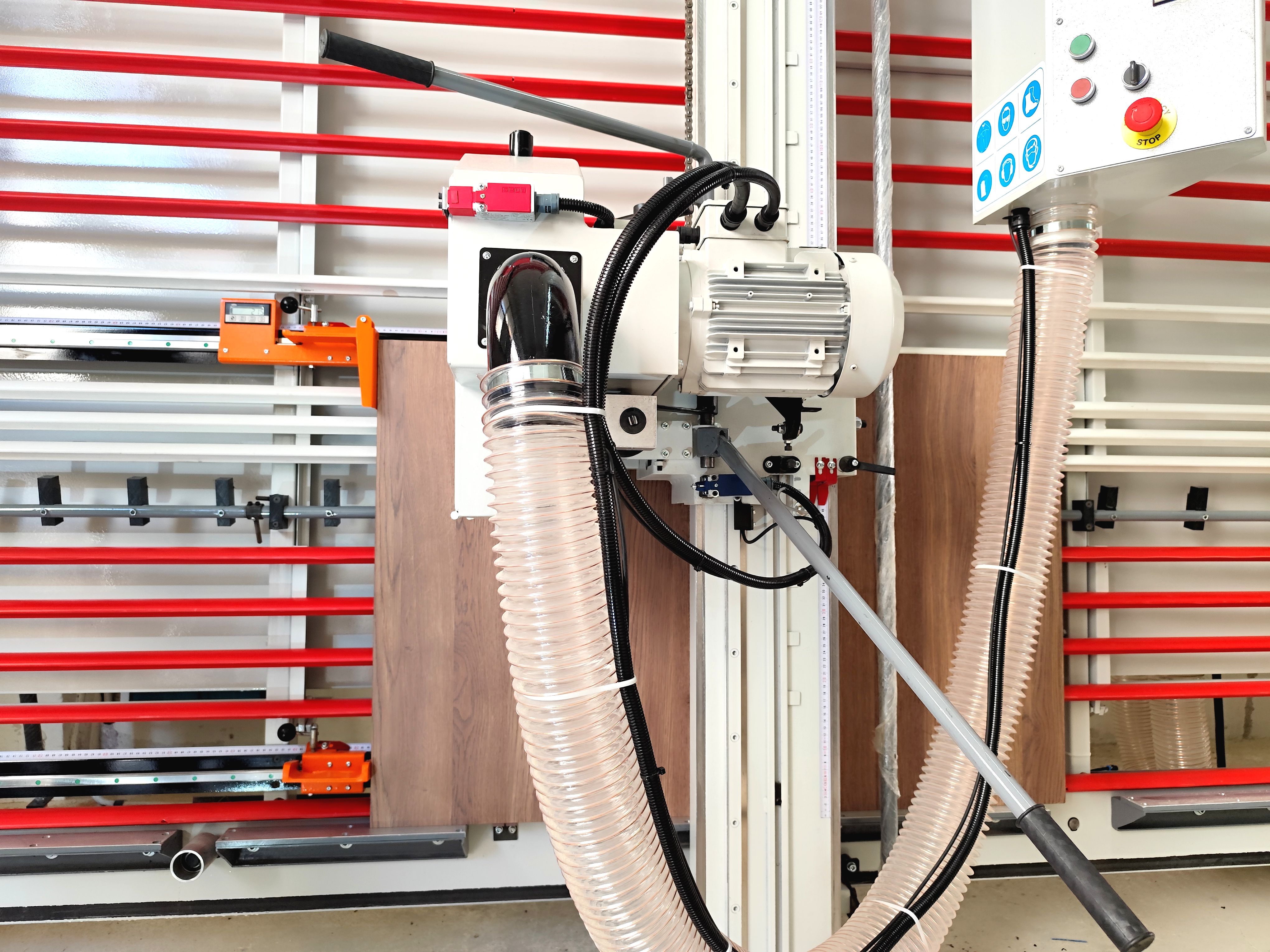

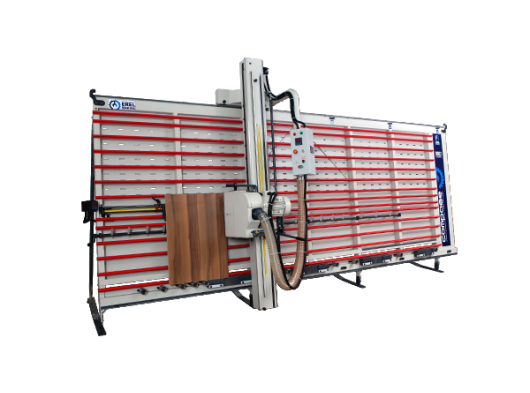

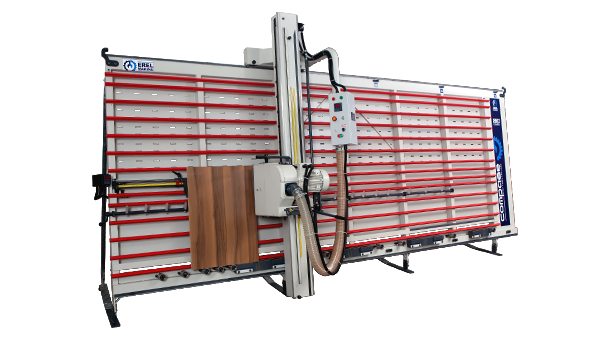

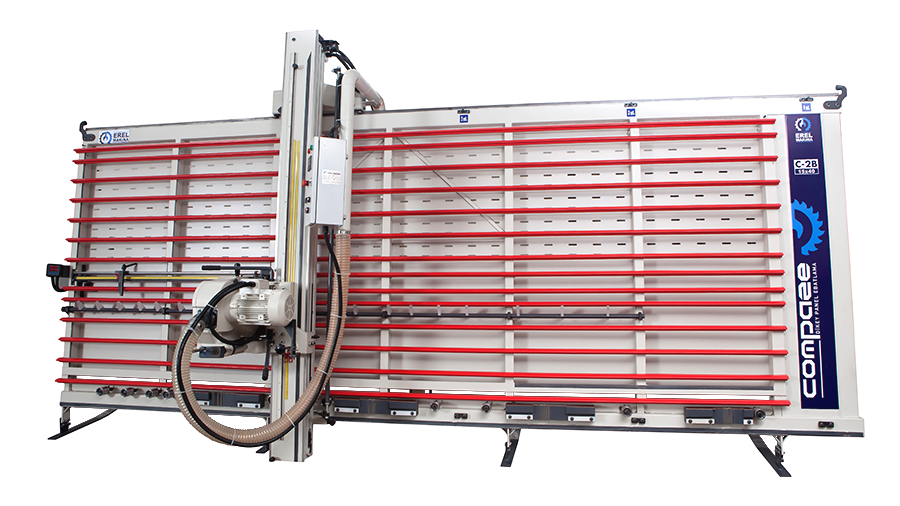

DPM2141 Vertical Panel Sizing Machine

ERELMAK DPM-21-41 TECHNICAL SPECIFICATIONS

Model Type: DPM2141

Angle cutting apparatus

Engine Power: 4hp - 3kw

Electrical connection: 3x 380V / 50 hz

Speed: 3000 rpm

Cutting blade speed: 5800 rpm

plotter blade speed: 7800 rpm

horizontal and vertical cutting height: 2100 mm

horizontal and cutting height: 4100 mm

Vertical and horizontal cutting length: 4000 mm

Cutting thickness: 55 mm

Cutting blade dimensions: 250x80x30x3.2

Plotter blade dimensions: 80 × 20

Working dimensions (L x H x W): 5000 mm x 3200 mm x 1600 mm

Loading dimensions: 5000 mm x 2600 mm x 1600 mm

Bottom carriers: Metal wheel

Panel lifting system

Moving panel: automatic
